Arizona State University Achieves Impressive Sustainability Goals

Tempe, Arizona – 2021

Arizona State University’s Interdisciplinary Science and Technology 7 (ISTB-7) building is the latest among dozens of (Leadership in Energy and Environmental Design) LEED projects on campus and is by far the most ambitious.

ISTB-7 is a new, approximately 281,000 gross-square-foot, high-performance research facility that fosters an interdisciplinary approach to knowledge generation and leading-edge research, including innovative endeavors focusing on the sustainability of food, water and energy. In expanding the research district at ASU’s Tempe campus, the building will give researchers a means to collaborate on pressing environmental and food challenges. In addition to offering public outreach and exhibit space, ISTB-7 will be home to the Julie Ann Wrigley Global Futures Laboratory, the Rob and Melani Walton Sustainability Solutions Service, the School of Sustainability, the Institute of Human Origins, and a five-story courtyard biome of flora and fauna.

Using a range of innovative approaches, including evapotranspiration, photovoltaics, and ASU’s own carbon-capture technology, the building is pursuing LEED Platinum status.

5,000

psi for shear walls and stairs

6,000

psi for elevated slabs

8,000

psi for columns

16,000

total cubic yards

The Challenge

Cement is carbon-intensive to produce so reducing the amount of cement in the building’s concrete mix was an essential element in lowering the project’s embodied carbon footprint. The team set out to utilize a post-consumer byproduct to reduce the total amount of portland cement in the building structure by at least 40%. “It takes a lot of equipment and resources to produce cement,” said McCarthy Building Companies Senior Project Manager Carlos Diaz. “If you can replace a high percentage of cement with a recycled material like fly ash, you can offset a significant amount of carbon.”

In addition to the high criteria sustainability requirements, the concrete needed to be aesthetically pleasing, since it would be used in Class A architecturally exposed columns, walls, stairs, deck soffits and polished concrete floors.

Ready-mix producer Martin Marietta AZ, concrete contractor McCarthy Building Companies, and us supplying the admixtures worked closely together to identify the right concrete mix that could substantially reduce the amount of cement in the mix. The firms brought together significant expertise in helping the customer improve building durability and reduce waste.

Martin Marietta advocates for science-based research that drives innovation and sustainable building design. Named one of the top 20 green builders in the country, McCarthy Building Companies is deeply involved in the evolution of sustainable construction.

An Award Winning Design

“Congrats to ASU and the design/construction team on receiving the ENR Southwest project of the year and for achieving LEED Platinum Certification. This project was a great opportunity for our team to further increase fly ash use in the pursuit of CO2 reduction for mix designs. As an example, through mix optimization, we were able to reduce the CO2 of one mix design by 59kg CO2e per cubic yard which equated to approx 624,000 kg CO2e savings on the decks alone. They were a great partner on the admixtures and mix design CO2 comparisons. This project offered Martin Marietta AZ valuable experience in understanding how to drive carbon reduction targets.”

Joel Martinez, QC Manager, Martin Marietta AZ

Learn More About ENR Award

A BubbleDeck Design

The team’s innovative approach extended to its application of concrete. Using a patented BubbleDeck design linking air, steel, and concrete in structural slabs, they reduced the amount of structural concrete needed on decks 2, 3, 4, 5, and 6

Achieving the right concrete mix was no simple task. Although 40 percent cement-replacement mixes are not uncommon, they are usually used in a targeted approach, such as to control the heat of hydration. With this project, the mix would need to be applied whole scale through the entire building. “Ready-mix concrete is sometimes viewed as a commodity, but the delivery of a product that has widescale application – especially one with architectural aspects to it – requires a significant mind shift,” said Diaz. “It takes months to determine the right mix – making sure the suppliers and chemical partners are working together to find the best admixtures, color, and supplementary cementitious material (SCM) for the application.”

“Our principal design firm, ready-mix supplier, sustainability consultant, admixture supplier, and structural engineer worked together to identify the best mix design to meet our goals,” said McCarthy Building Companies Senior Project Engineer Kristine Sorensen. “There was a great deal of collaboration involved with identifying a sustainable mix design that would meet the structural integrity measures and would also look outstanding.”

“Everyone involved in the project came together to discuss different mix design scenarios and how to use locally available resources,” said Martin Marietta AZ, Quality Control Manager Joel Lopez Martinez. “Using high fly ash mix design for the 6,000 PSI mix is beneficial as it reduces permeability to water and produces a densified product. The admixtures played a big part in the success of this mix design, as in help with water reduction by using WRDA 64 and increasing concrete workability by using ADVA® 195.”

“Many times, we have a pool of ready-mix contractors to work with and they have lots of mix designs already predetermined based on a project’s mix, strength, and flowability requirements,” said Diaz. “When you’re creating something new with high-strength requirements like this, there’s a big team effort required. Together, we gathered input from the design team and then looked at all aspects of the job to answer questions such as How do you control heat?’ and ‘How will the mix flow through congested rebar?”

For this mix, Martin Marietta AZ, used fly ash, along WRDA 64® water reducer with the ADVA® 195. superplasticizer. Once they selected a mix, the team started batch trials to ensure it performed as structurally intended. Based on the success of those results, they finalized the mix and began the concrete pour.

“The ADVA® admixture gave us the opportunity to keep the water/cement ratio low while achieving high strength as well as the workability to place the concrete very easily,” said Bill Wheeler, Quality Control for Martin Marietta AZ. “We prefer using the ADVA® admixture because it results in fewer bubbles against the surface than midrange water reducers. This creates a smoother finish on the forms.”

The project proceeded smoothly and is slated for completion in December 2021. “This is a legacy building that tells a unique story,” Diaz said. “We’re privileged to be a part of it.”

Wider Column Spacing

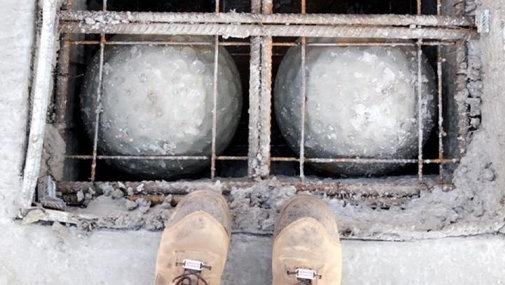

BubbleDeck designs involve inserting hollow plastic balls into the slab and holding them in place with steel reinforcement. The plastic balls would normally be filled with concrete. This design approach enabled lighter decks so the columns spacing is wider.

Project Participants

Project: Interdisciplinary Science & Technology building 7 (ISTB-7)
Owner: Arizona State University
Architect/Designer: Architekton | Grimshaw
Structural Engineer: BuroHappold
Sustainability Consultant: Thornton Tomasetti
Ready-Mix Producer: Martin Marietta AZ
Concrete Contractor: McCarthy Building Companies, Inc.
Concrete Mix and Specifications:
4,000 PSI for slab on grade, grade beams, caissons, caisson caps and foundation walls;
5,000 PSI for shear walls and stairs; 6,000 PSI for elevated slabs; and 8,000 PSI for columns
SCM: Class F fly ash
Aggregate: One-inch rock
Volume: 16,000 total cubic yards
